Not Everything Works
January 14, 2014

Typically, I boast about successful projects on this site. One could conclude incorrectly that I succeed in everything I undertake which is definitely not the case. Even projects that seemed successfully completed do not always work exactly as I would have liked. Here is a translation of a list of problems I drew up in mid-December.

Table of Contents

  1. lighttpd with Rasbian Stretch
  2. The Ghost in the Sonoff
  3. Power Outages and the Sonoffs
  4. mDNS and TASMOTA
  5. Chromecast Audio
  6. Dynamic DNS

lighttpd with Raspbian Stretch toc

On August 4th, I reported that I could not securely stream video from MPJG-Streamer a proxy server in Lighttpdin the latest version of Raspian StrecthRaspian Stretch. I still have not found the solution, but it could be found pursuing one of three tracks.

  1. The version of Lighttpd in the Debian Stretch package repository is 1.4.45-1 which is newer than the one that was installed from the Raspian Jessie repository (version 1.4.35-4+deb8u1). This information is confirmed either here or with the apt-cache policy command.
    pi@domo:~ $ apt-cache policy lighttpd lighttpd: Installed: 1.4.35-4+deb8u1 Candidate: 1.4.35-4+deb8u1 Version table: *** 1.4.35-4+deb8u1 0 500 http://mirrordirector.raspbian.org/raspbian/ jessie/main armhf Packages 100 /var/lib/dpkg/status

    I could install the older version of Lighttpd on Stretch to see if it works.

  2. At the same time that I installed the proxy server in Lighttpd 1.4.35-4, I added the OpenVPN server (version 2.3.4-5+deb8u2) on the Raspberry Pi. This installation might include a necessary library or change the system configuration in such a way that Lighttpd could securely route the MPJG-Streamer video stream. It's not very likely, but you never know.

  3. Finally, I could resume my search on the web to find out how to set up a proxy server with the new version of Lighttpd. It had required a lot of research to learn how to do it before. Over time, someone may have updated the information on this topic.

None of this is a priority right now. Indeed, I continue to use Raspian Jessie on the Raspberry Pi that houses my home automation system based on an old version of Domoticz as explained in the April 11, 2018, post updated on the 23: Secure Webcam streaming with MJPG-Streamer on a Raspberry Pi .

Since January 10, 2019, I have started to update Raspbian. The addition of another IP camera and a very positive experience with OpenVPN on Jessie have persuaded me to no longer use Lighttpd to transfer video streams.

The Ghost in the Sonoff toc

I swear there are malevolent ghosts in some of the Sonoffs in use around the house. Accordingly, I decided to borrow the title from Arthur Koestler, The Ghost in the Machine, a book I read a long time ago. So long ago that I don't remember much about it except that I found the writing enjoyable. The web has informed me that the ghost in the machine refers to the dualism of the mind and body in Descartes. It comes from an English philosopher, Gilbert Ryle, whom I do not know. Never too late to learn a little.

My spooks randomly turn on and off either of two Sonoffs that control a pair of bedside lamps. This should not be too surprising, given the one metre phone cable between the buttons and each Sonoff which contain one four unshielded wires in parallel. These combined with the CAT5 cable of more than two metres connecting the two Sonoffs constitute a good antenna for any static coming from several nearby sources.

  1. There is obviously the mains (120 V to 60 Herz) that supply the current to the lamps and Sonoffs. In addition, one of the lamps has a very long wire that I simply coiled rather than shorten. In addition, it is close to one of the Sonoffs, and above mentionned cables.
  2. There is an alarm clock with LED display and built-in AM-FM radio on one of the bedside tables. It was the cheapest model that was available in a big-box store when I bought it; protection against radio interference is probably not one of the best qualities of the device.
  3. There is a digital cordless phone on the other bedside table. Since it complies with the DECT 6.0 standard, it operates at 1.9 GHz which should not interfere with Wi-Fi, but who knows?
  4. Occasionally a tablet connected to the 2.4 GHz Wi-Fi network is used near the Sonoffs that operate on the same frequency and which could be a source of interference.

It is not easy to pinpoint the exact source of the problem because both Wi-Fi switches can work properly for weeks. Only occasionally and for no apparent reason, a lamp will come on for a few seconds and then turn off and restart this circus two or three minutes later until I unplug the Sonoff.

It's far from being an unknown problem. Here are some similar situations Interference on my digital input - suggested fixes? and False trigger issue using GPIO input.

I had added a pull-up resistor to the 3.3 V line at the input at pin 14 of the ESP8266 in each of the Sonoff as suggested in several places, including Random input HIGH detect on GPIO.

     tactile buttons                           Sonoff
      (in parallel)                  3,3K Ω    Header
       _| o---------,                ____
        | o------,  |            +--|____|-->o 5V
                 |  |            |
       _| o------|--+-----//-----+---------->o GPIO14
        | o------+--------//---------------->o 0V

My next step will probably be to add a low value capacitor between pin 14 of the ESP8266 and ground. Combined with the resistor, it would constitute a low-pass filter which attenuates the high frequency transient signals.

Several refer to the following article Protecting Inputs in Digital Electronics. It contains a discussion about the protection of the microcontroller when [...] buttons connected [...] via long wires [may] lead to inadvertent electronic failure. Long wires can act as an inductor and when a button is opened or closed, large voltage spikes can appear... I do not think the Sonoff is damaged because it correctly responds to commands sent by Domoticz through the mqtt server as well as when the Sonoff push button or any of the remote buttons are pressed. Nevertheless, the article is interesting.

It has been almost a week since I disconnected the Sonoff which switched on randomly. Two days ago, I reconnected for a few minutes to immediately find that the problem was still present. Around noon, the router stopped working for a few minutes. When the wireless network reappeared, the other Sonoff and the Raspberry Pi that houses the home automation servers and the mqtt server failed to reconnect. Unplugging and reconnecting the Sonoff did not fix anything until I restarted the Raspberry Pi. After I reconnected the two Sonoffs and everything worked. I'm not remaining in the bedroom to confirm that everything will continue as it should, the real test will be tonight.

Update: it does not work; the same Sonoff continues to act arbitrarily.



Power Outages and the Sonoffs toc

Injured and even dead Sonoffs are everywhere here. I exaggerate slightly, but there have been two major power outages lately, and some of the Sonoffs installed in the house have had a hard time of it, and two have broken down.

In one case, it is obvious that it is the power supply that is defective. It has been possible to upload the latest version of TASMOTA and to verify that it is possible to activate the relay via Wi-Fi as long as the device is powered through the header. However, nothing works when the Sonoff is plugged into the mains.

As for the other Sonoff, it looks like it can no longer store the local network address in the flash memory because it cannot reconnect to the local network when it is rebooted for some reason.

There is a third Sonoff, installed in the base of a lamp, is defective. Its push button is functional but the Sonoff does not connect to the Wi-Fi network. On the other hand, the button connected to pin 14 of the ESP8266 does not work. To get a better understanding of what's going on, the Sonoff will have to be retrieved to upload Mr. Arends' software again.

Since the short failure of the router earlier today, there are four Sonoffs that respond to mqtt sent with Domoticz, but whose web server is not online. Why?

I do not know if these issues are related to the latest version (6.3.0) of TASMOTA that has been installed on all 9 Sonoff of home automation system. I have the impression that recovery from a Wi-Fi network failure or power failure is less robust than before. I wanted to change the source code by entering the network SSID and password to see if it would have an impact, but I failed to compile the source code in the Arduino IDE.

It was obvious that the compilation problems were caused by errors on my part. All I had to do was to carefully follow Theo Arends instructions: Arduino IDE, How to setup and configure Arduino IDE for Tasmota compilation and upload. The compilation was successful with version 2.5.0-beta2 of the esp8266 Arduino core updated with the IDE board manager. I followed the instructions for ESP8266 Board version 2.5.0. There were conflicts with libraries already installed. I copied the contents of the source directory lib to the .../sketchbook/librairies directory as instructed in For all versions. However, two of the copied libraries already existed, but under different names. It was necessary to eliminate these old versions otherwise the IDE used them rather than those provided with Tasmota .
January 14, 2019

I had started using Platform.io as Theo Arends, but for some reason I can not upload new firmware to a Wemos D1 mini in this environment. There is no problem if the micro-controller is an ESP866 NodeMCU V3. This defies understanding. As long as this problem is not solved, I will use the Arduino IDE that works with the three types of devices based on the ESP8266 I own.

mDNS et TASMOTA toc

Theo Arends' TASMOTA has been using the ESP8266mDNS library. Thus one can reach a Sonoff Web server with an address of the form hostname.local rather than with a numeric IP address such as 192.168.1.185. This is great because the latter is likely to change according to the whim of DHCP server on the router. To make it even easier, I changed the host names of the Sonoffs, choosing more memorable names such lampe-sofa, lampe-biblio and lampe-michel for my bedside lamp.

What a disappointment when I could not find some Sonoffs at their hostname.local address after a power failure. I had to use Zenmap on the desktop and NetX on the Android tablet to find the dynamic IP addresses assigned to these Sonoffs. Unfortunately, neither of these utilities works perfectly and it was necessary to more or less guess the IP address in some cases.

Recently, I found the source of the problem. Just before the crash, I uploaded the new version (v6.3.0) of Theo Arends firmware. There are several variants of TASMOTA as can be seen in its Github repository. I installed sonoff-classic.bin on the first three Sonoffs, then I decided to install sonoff-FR.bin on the others. But the ESP8266mDNS library is not included in the second variant which was clearly indicated. A considerable loss of time would have been avoided if I had taken the trouble to read the documentation.

Since I replaced sonoff-FR.bin with sonoff-classic.bin on all Sonoffs, they publish their web service without fail.

michel@hp:~$ avahi-browse --all + wlp3s0 IPv6 Mosquitto MQTT server on domic _mqtt._tcp local + wlp3s0 IPv4 Mosquitto MQTT server on domic _mqtt._tcp local + wlp3s0 IPv6 domic [06:ab:32:b1:87:1e] Workstation local + wlp3s0 IPv4 domic [06:ab:32:b1:87:1e] Workstation local + wlp3s0 IPv4 lampe-sofa Web Site local + wlp3s0 IPv4 lampe-biblio Web Site local + wlp3s0 IPv4 lampe-michel Web Site local + ... and so on

The avahi library that supports Zero-configuration networking or Zeroconf in Linux is installed by default in Ubuntu. So I can reach the Sonoff web server which controls indirect lighting hidden behind a heavy bookshelf using the address http://lampe-biblio.local with the Firefox browser. One can do the same with Safari on Mac OS X or iOS where it is the Bonjour library that supports the Zeroconf protocols.

Unfortunately, the equivalent of Avahi or Bonjour is not available on the Android platform. This may explain why the Chromium browser can not resolve local names of the type hostname.local. So, when I want to use Chromium in Ubuntu, I get the IP address explicitly with Avahi before.

michel@hp:~$ avahi-resolve -n lampe-biblio.local lampe-biblio.local 192.168.1.127

I use Zeroconf Browser on my Android tablets to display the list of HTTP services and the IP address of the servers published with the protocol mDNS. This application, which has not been updated for several years, is no longer available on Google Play, but it can be found on Aptoide. Caveat emptor , I do not know if this site assiduously checks that the applications found there are safe. Service Browser in Google Play seems comparable.

It may be necessary to install Bonjour in Windows 10 to do the same on this platform. I cannot verify because I have already added CUPS for used network printers on my Windows 10 partition and I believe that Bonjour is automatically installed with CUPS. However, I am sure it is necessary to add Bonjour in Windows XP, if someone still uses this version.

There is no true failure here. However, I would like to modify the French variant of Theo Arends' firmware of by adding mDNS, eliminating features that are not useful for simple basic Sonoff switches if necessary. However, to get there, I would have to solve the problems with the Arduino IDE and Platform.io that I mentioned in the previous section. TASMOTA itself has changed a lot since version 5.xx and it will take some time to find my way around.

Chromecast Audio toc

In mid-November, Google was selling Home mini at a discount. Only $ 34.95, but you had to spend at least $ 35.00 for free shipping. So I added a Chromecast, also on sale, to my order. I do not know how I did it, but it's actually a Chromecast Audio that I ordered.

The gadget comes with an audio cable with 3.5 mm connectors that is only 12 cm long. I could not place the unit within that short distance of the amplifier. So I used a 1 m audio cable to make the connection.

My preliminary tests showed that the device fulfills its function of transmitting audio over Bluetooth to active speakers. So I can play music, podcasts and internet radio from my Android tablet . However, it is not possible to transmit audio from a video synchronously. Watching a YouTube video on the tablet while listening to the sound being transmitted to the Chromecast Audio connected to a sound system is like watching an old 50s era Godzilla movie, speech and lips are off-beat. This is exactly the same problem I had encountered using a Raspberry Pi as the audio stream receiver rather than the Chromecast Audio. The problem is inherent in the technology. All this is confirmed JeremyTM in the discussion surrounding the issue: Chromecast Audio delay when watching video.

The 1 m audio cable I used to test the device is long enough to connect to my tablet when I'm comfortably ensconced in my sofa. This gadget is completely unnecessary. It was a mistake to get it.

Unlike me, my nephews and nieces commonly use smart phones. In a few days, Chromecast Audio will go to the one whose phone does not have a 3.5 mm audio connector.

Dynamic DNS toc

About a year ago, I created a dynamic domain name at FreeDNS. Combined with port forwarding on the router, I could access my home automation server and the video stream from the USB webcam connected to the Raspberry Pi host from anywhere through the Web. It was also a necessary step to use a Google Home Mini to control IoT devices in my house. Everything was secured using only TLS connections (i.e. HTTPS). All this is explained in two posts: Google Home Mini with Domoticz using IFTTT and Secure Webcam streaming with MJPG-Streamer on a Raspberry Pi

Over the New Year holidays, we were away for a short while. Just before I turned on the conditional timers in Domoticz. I was disappointed, I could not get into the home automation server and I did not get e-mail notifications from it when IoT devices were turned on or off simulating our presence at home. I could not view the video stream from the Webcam. Finally, I also could not connect to the OpenVPN server I had installed not too long ago.

This missing e-mail notifications are easily explained. I got tired of all those messages when I was at home and knew when things were being turned on or off, so I had disabled the service in Domoticz.

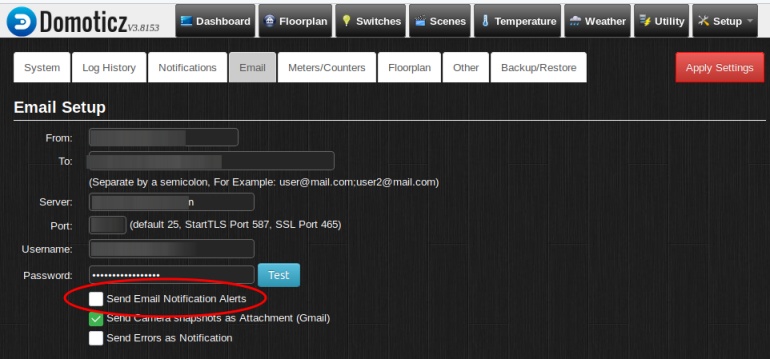

Email Setup in Domoticz

I will have to look into changing this in the Away script; enabling e-mail notification when timers are enabled and disabling it when device timers are disabled.

All the other problems are clearly linked. The cause presented itself somewhat by accident when I opened a Web site that told me I was in Toronto which is 1,600 km away from my house. How could that be, when before Moncton, about 20 km away, used to be identified as my location? I checked my IP and realized that it was now different. After at least a couple of years of being assigned the same IP, my ISP decided for reasons unknown to change it. So why hadn't the DDNS entry at FreeDNS been updated?

I logged into my router and re-entered the values in the DDNS configuration. It reported it failed to update the DDNS entry. I removed the user name and password values and changed them to guest as suggested in Step 2, Router stuff in Automatic DNS changes via your router! at FreeDNS. Eventually, the router said it was able to update the IP address. Unfortunately, it was not possible for me to check that. I had manually updated the IP address in my sud-domain entry at FreeDNS, and my ISP seems to be perfectly happy to assign the new IP systematically since the last change.

It could very well be a couple of years again before I get assigned a new IP address. Until then, I will not know if the automatic DNS updating is performed correctly by the router.
