November 16, 2017
Google Assistant on an Orange Pi Zero running DietPi

The novelty of talking with Mme Google wears out. It would be nice to do something practical with voice recognition. Furthermore, who wants an open microphone streaming all sounds in the house to the outside world? It could be paranoia; but I would prefer so called "hot word" recognition to be done locally.

The preferred method seemed to be snowboy from KITT.AI. But I had problems. Fortunately, some clever people had already found solutions, all I had to do was find their site.

Table of Contents

  1. Audio Hardware
  2. Installing Python 3
  3. Installing Python Audio Prerequisites
  4. Installing snowboy
  5. snowboy with Domoticz
  6. Next?

  1. Audio Hardware
  2. In a previous post about Google Assistant, I showed how to set up the audio hardware on the Orange Pi Zero with an expansion board. If this is already done, skip to the next section.

    Before powering up the OPiZ, plug in the expansion board and then connect powered speakers using the 3.5mm jack on it. The expansion board already contains a microphone. When the cube like case is used, it makes for a neat package which is smaller than the wallwart powering the speakers as can be seen below.

    After opening an ssh session as user dietpi, I made sure audio output was enabled and directed to the 3.5mm jack. This can be done in dietpi-config.

    dietpi@domopiz:~$ sudo dietpi-config

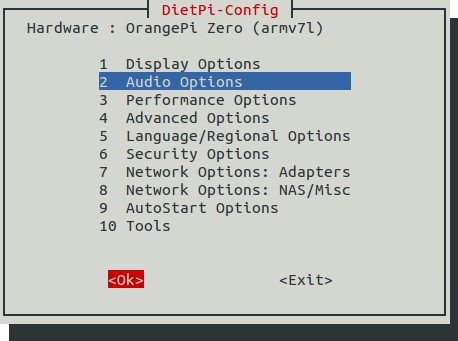

    Select Audo Options in the main menu.

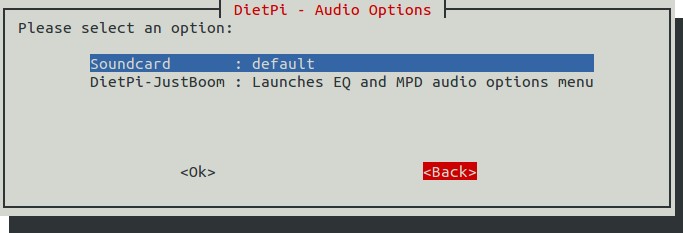

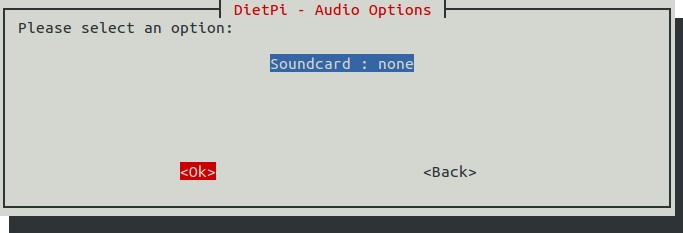

    If the Soundcard is not set to Analogue then click on Ok.

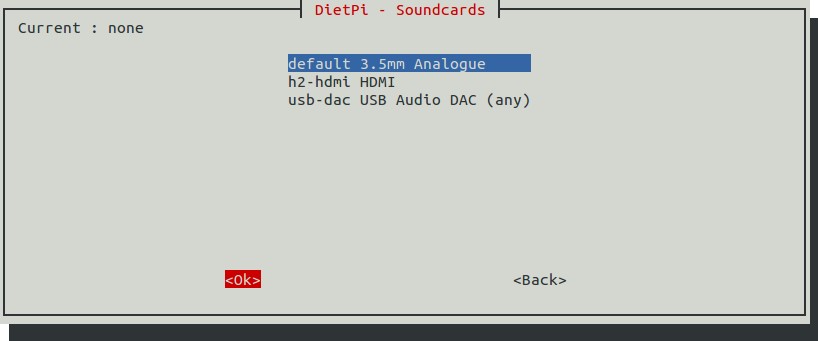

    Then select default 3.5mm Analogue.

    A number of packages will be installed. The following will be displayed on the screen during their installation.

    The following extra packages will be installed: libasound2 libasound2-data libsamplerate0 Suggested packages: libasound2-plugins The following NEW packages will be installed: alsa-utils libasound2 libasound2-data libsamplerate0

    Alsa-utils contains arecord and aplay that will be used to test the audio later. Now that the audio output has been set to the default (3.5mm analogue jack), it is time to go Back to the main menu.

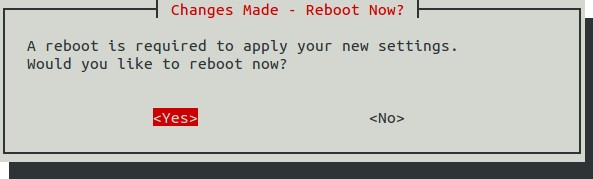

    Exit the configuration utility. It will be necessary to reboot.

    After giving the OPiZ some time to reboot, log back in and ensure that dietpi is part of the audio group.

    dietpi@domopiz:~$ groups dietpi dietpi : dietpi adm tty dialout cdrom sudo audio www-data video plugdev games users input netdev

    Had dietpi not been a member of audio, it would have been a simple matter to join the group:

    dietpi@domopiz:~$ adduser dietpi audio

    The first step in testing the audio hardware is to record sounds through the microphone to a temporary file sample.wav.

    dietpi@domopiz:~$ arecord -M -f S16_LE -r 16000 -c 1 --buffer-size=204800 -v /tmp/sample.wav Recording WAVE '/tmp/sample.wav' : Signed 16 bit Little Endian, Rate 16000 Hz, Mono Hardware PCM card 0 'audiocodec' device 0 subdevice 0 Its setup is: stream : CAPTURE access : MMAP_INTERLEAVED format : S16_LE subformat : STD channels : 1 rate : 16000 exact rate : 16000 (16000/1) msbits : 16 buffer_size : 204800 period_size : 51200 period_time : 3200000 tstamp_mode : NONE period_step : 1 avail_min : 51200 period_event : 0 start_threshold : 1 stop_threshold : 204800 silence_threshold: 0 silence_size : 0 boundary : 1677721600 appl_ptr : 0 hw_ptr : 0 mmap_area[0] = 0xb6b03000,0,16 (16) bla bla bla that's me speaking ^C that's me hitting the CtrlC keyboard combination Aborted by signal Interrupt... dietpi@domopiz:~$

    Then it's playback time to ensure that the speakers are getting the audio output.

    dietpi@domopiz:~$ aplay -M /tmp/sample.wav --buffer-size=204800 -v Playing WAVE '/tmp/sample.wav' : Signed 16 bit Little Endian, Rate 16000 Hz, Mono Hardware PCM card 0 'audiocodec' device 0 subdevice 0 Its setup is: stream : PLAYBACK access : MMAP_INTERLEAVED format : S16_LE subformat : STD channels : 1 rate : 16000 exact rate : 16000 (16000/1) msbits : 16 buffer_size : 204800 period_size : 51200 period_time : 3200000 tstamp_mode : NONE period_step : 1 avail_min : 51200 period_event : 0 start_threshold : 204800 stop_threshold : 204800 silence_threshold: 0 silence_size : 0 boundary : 1677721600 appl_ptr : 0 hw_ptr : 0 mmap_area[0] = 0xb6b87000,0,16 (16)

    It works! And I did not have to adjust playback and recording volumes. All that remains is to create the asound configuration file.

    dietpi@domopiz:~$ nano .asoundrc
    pcm.!default { type asym capture.pcm "mic" playback.pcm "speaker" } pcm.mic { type plug slave { pcm "hw:0,0" format S16_LE } } pcm.speaker { type plug slave { pcm "hw:0,0" } }

  3. Installing Python 3
  4. If you are following along from my previous post, then Python 3 is already installed. However the Google Assistant service should be disabled. Hot word detection is to be performed by snowboy, not Google.

    dietpi@domopiz:~$ sudo systemctl stop google-assistant-demo.service dietpi@domopiz:~$ sudo systemctl disable google-assistant-demo.service Removed symlink /etc/systemd/system/google-assistant.service. Removed symlink /etc/systemd/system/multi-user.target.wants/google-assistant-demo.service.

    If you are starting off with a fresh copy of Armbian from DietPi then the first step is to install Python version 3.

    dietpi@domopiz:~$ sudo apt-get update dietpi@domopiz:~$ sudo apt-get install python3-dev python3-venv dietpi@domopiz:~$ python3 --version Python 3.4.2

    Next a Python 3 virtual environment is created.

    dietpi@domopiz:~$ python3 -m venv env

    The virtual environment env is a directory in the dietpi home directory. It is activated by the source /home/dietpi/env/bin/activate and deactivated by the deactivate command. As the dialogue shows, activating the virtual environment means that the command python will now invoke python3. This is done with symbolic links and modification of the search path and probably more tricks. That would make it possible to have other versions of Python installed in other virtual environments and using any version without interference.

    dietpi@domopiz:~$ python --version -bash: python: command not found dietpi@domopiz:~$ echo $PATH /usr/local/bin:/usr/bin:/bin dietpi@domopiz:~$ source env/bin/activate (env) dietpi@domopiz:~$ python --version Python 3.4.2 (env) dietpi@domopiz:~$ echo $PATH /home/dietpi/env/bin:/usr/local/bin:/usr/bin:/bin: (env) dietpi@domopiz:~$ deactivate dietpi@domopiz:~$ python --version -bash: python: command not found

    The last step is to upgrade the installed versions of pip and setuptools.

    dietpi@domopiz:~$ env/bin/python -m pip install pip setuptools --upgrade

    Of course, if the SD card contains a fresh copy of the operating system the host name will not be domopiz unless you changed it to that particular name in the Security Options of DietPi-Config.

  5. Installing Python Audio Prerequisites
  6. The next step is to get all the packages needed by Python to access the audio hardware. Some of these may have been installed previously; it does not matter, no harm will occur if an unnecessary supplementary installation is attempted.

    dietpi@domopiz:~$ sudo apt-get install gcc dietpi@domopiz:~$ source env/bin/activate (env) dietpi@domopiz:~$ sudo apt-get install portaudio19-dev libffi-dev libssl-dev (env) dietpi@domopiz:~$ sudo apt-get install python3-pyaudio sox (env) dietpi@domopiz:~$ sudo apt-get install libatlas-base-dev (env) dietpi@dlsomopiz:~$ pip install pyaudio

    It is time to test Python audio by recording some sound using the microphone on the expansion board, by using a Python script rec to record an audio file which is then played back.

    (env) dietpi@domopiz:~$ rec temp.wav ... Press CtrlC to stop recording (env) dietpi@domopiz:~$ aplay temp.wav Playing WAVE 'temp.wav' : Signed 16 bit Little Endian, Rate 48000 Hz, Stereo

    I remain amazed at the quality of the little electret microphone on the OrangePi Zero expansion board. I recorded my voice by talking towards the screen at a normal conversational level while sitting at my desk. The OPiz was on the floor about a half meter behind me, yet the sound gets recorded albeit the playback level is not very high. The OPiZ was not in its case because of the heat dissipation problem; that may have an effect on sound recording.

  7. Installing snowboy
  8. The precompiled snowboy package for Raspberry Pi from KITT.AI can "almost" be used as is. The first step is to get it.

    (env) dietpi@domopiz:~$ wget https://s3-us-west-2.amazonaws.com/snowboy/snowboy-releases/rpi-arm-raspbian-8.0-1.1.1.tar.bz2 (env) dietpi@domopiz:~$ tar xjvf rpi*.bz2 (env) dietpi@domopiz:~$ mv rpi*.1 snowboy (env) dietpi@domopiz:~$ cd snowboy

    Unfortunately, this is where I hit a wall. I could not get the demo script to run properly.

    (env) dietpi@domopiz:~/snowboy$ python demo.py resources/snowboy.umdl Traceback (most recent call last): File "demo.py", line 1, in import snowboydecoder File "/home/dietpi/snowboy/snowboydecoder.py", line 5, in import snowboydetect File "/home/dietpi/snowboy/snowboydetect.py", line 28, in _snowboydetect = swig_import_helper() File "/home/dietpi/snowboy/snowboydetect.py", line 24, in swig_import_helper _mod = imp.load_module('_snowboydetect', fp, pathname, description) File "/usr/lib/python3.4/imp.py", line 243, in load_module return load_dynamic(name, filename, file) ImportError: libpython2.7.so.1.0: cannot open shared object file: No such file or directory

    The Python 2.7 library that could not be found should have been a loud signal, but I did not see it. Fortunately, I found a repository on github by Mihail Burduja who with the help of António Pereira had the solution. The _snowboydetect.so in the package from KITT.AI is for Python 2.7. The developer provides the snowboy source code, so presumably, it should be possible to recompile the library. But it is not necessary to do so, we can use the Python 3 library in their repositories. DietPi did not include git in its distribution. It is easy enough to install but I got lazy and just got the zip file of the latest version from github.

    (env) dietpi@domopiz:~/snowboy$ cd $home (env) dietpi@domopiz:~$ wget https://github.com/warchildmd/google-assistant-hotword-raspi/archive/master.zip ... 2017-11-12 12:54:05 (1.31 MB/s) - ‘master.zip’ saved [2889409/2889409] (env) dietpi@domopiz:~$ unzip master.zip (env) dietpi@domopiz:~$ mv google*master snowgoog

    Then it was just a matter of copying the Python 3 library into the snowboy directory and running the demo script again

    (env) dietpi@domopiz:~$ cd snowboy (env) dietpi@domopiz:~/snowboy$ mv _snowboydetect.so _snowboydetect.so_py2 (env) dietpi@domopiz:~/snowboy$ cp ../snowgoog/_snowboydetect.so_py3 _snowboydetect.so (env) dietpi@domopiz:~/snowboy$ python demo.py resources/snowboy.umdl ALSA lib pcm.c:2239:(snd_pcm_open_noupdate) Unknown PCM cards.pcm.front ... ALSA lib pcm.c:2239:(snd_pcm_open_noupdate) Unknown PCM cards.pcm.phoneline Listening... Press Ctrl+C to exit "bla bla" saying random words "snowboy" saying the hotword INFO:snowboy:Keyword 1 detected at time: 2017-11-16 15:47:34 "snowboy" and again INFO:snowboy:Keyword 1 detected at time: 2017-11-16 15:47:38

    IT WORKS!

    Time to move on to the second demo script using "snowboy" and "alexa" as two hot words.

    (env) dietpi@domopiz:~/snowboy$ python demo2.py resources/snowboy.umdl resources/alexa.umdl ALSA lib pcm.c:2239:(snd_pcm_open_noupdate) Unknown PCM cards.pcm.front .. ALSA lib pcm.c:2239:(snd_pcm_open_noupdate) Unknown PCM cards.pcm.phoneline Listening... Press Ctrl+C to exit "bla bla" "snowboy" INFO:snowboy:Keyword 1 detected at time: 2017-11-16 15:58:43 "more bla bla" "alexa" INFO:snowboy:Keyword 2 detected at time: 2017-11-16 15:58:47 "back to trying snowboy" INFO:snowboy:Keyword 1 detected at time: 2017-11-16 15:58:49 "and alexa" INFO:snowboy:Keyword 2 detected at time: 2017-11-16 15:58:50

    As can be seen, this worked also. Many thanks to Mihail Burduja (alias warchildmd) aided by António Pereira (alias Shaxine) for the information that finally helped me install snowboy on an Orange Pi Zero.

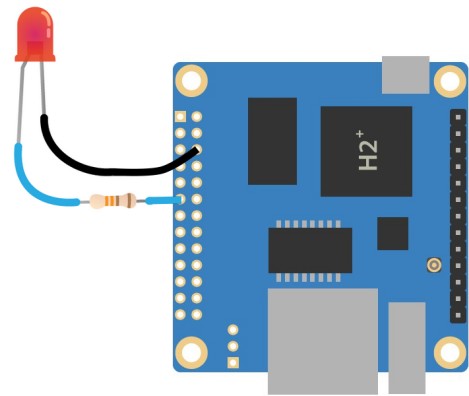

    To continue with the LED examples in the documentation, a modified GPIO library for the OrangePi Zero, called OPi.GPIO will have to be installed. Since the Python 3 virtual environment is used, substitution of pip3 for pip as suggested in the library documentation is not done.

    dietpi@domopiz:~$ source env/bin/activate If not already in the Python 3 virtual environment (env) dietpi@domopiz:~$ pip install --upgrade OPi.GPIO Collecting OPi.GPIO Downloading OPi.GPIO-0.2.5-py2.py3-none-any.whl Installing collected packages: OPi.GPIO Successfully installed OPi.GPIO-0.2.5

    OPi.GPIO is a drop-in replacement for the classic Raspberry Pi GPIO Python library RPi.GPIO. So all that needs to be done to use it is to edit change one letter in the first line of the light.pyscript.

    import OPi.GPIO as GPIO import time class Light(object): def __init__(self, port): self.port = port GPIO.setmode(GPIO.BCM) GPIO.setup(self.port, GPIO.OUT) self.on_state = GPIO.HIGH self.off_state = not self.on_state def set_on(self): GPIO.output(self.port, self.on_state) def set_off(self): GPIO.output(self.port, self.off_state) def is_on(self): return GPIO.input(self.port) == self.on_state def is_off(self): return GPIO.input(self.port) == self.off_state def toggle(self): if self.is_on(): self.set_off() else: self.set_on() def blink(self, t=0.3): self.set_off() self.set_on() time.sleep(t) self.set_off() if __name__ == "__main__": light = Light(17) while True: light.blink() time.sleep(0.7)
    dietpi@domopiz:~/snowboy$ nano light.py
    import OPi.GPIO as GPIO

    Again, because the Python 3 virtual environment is used, the command to invoke the light.py script is not exactly what is shown in the KITT.AI documentation. The script just blinks an LED that is connected to GPIO 17 and ground.

    (env) dietpi@domopiz:~/snowboy$ sudo ../env/bin/python light.py

    There is more information about using sudo in a Python virtual environment on the ask ubuntu forum.

    There will be a warning on subsequent runs of the script:

    UserWarning: Channel 17 is already in use, continuing anyway. Use GPIO.setwarnings(False) to disable warnings
    To get rid of this warning, GPIO.setwarnings(False) can be added to the script before GPIO.setmode(GPIO.BCM) lin in the __init__ definition. I do not like doing that, it seems to me that control of the GPIO channels should be relinquished (using GPIO.cleanup()?) when the object is destroyed. I know next to nothing about Python so I could not do that correctly.

    To control the LED with a spoken key word, I copied the demo.py script to modify it as instructed. Changes are shown on a white background.

    (env) dietpi@domopiz:~/snowboy$ cp demo.py demo_light.py (env) dietpi@domopiz:~/snowboy$ nano demo_light.py
    import snowboydecoder
    import sys
    import signal

    from light import Light
    interrupted = False def signal_handler(signal, frame): global interrupted interrupted = True def interrupt_callback(): global interrupted return interrupted if len(sys.argv) == 1: print("Error: need to specify model name") print("Usage: python demo.py your.model") sys.exit(-1) model = sys.argv[1] signal.signal(signal.SIGINT, signal_handler) detector = snowboydecoder.HotwordDetector(model, sensitivity=0.5) print('Listening... Press Ctrl+C to exit')
    led = Light(17) detector.start(detected_callback=led.blink, interrupt_check=interrupt_callback, sleep_time=0.03)
    (env) dietpi@domopiz:~/snowboy$ sudo ../env/bin/python demo_light.py resources/snowboy.umdl ALSA lib pcm.c:2239:(snd_pcm_open_noupdate) Unknown PCM cards.pcm.front ... Listening... Press Ctrl+C to exit /home/dietpi/snowboy/light.py:8: UserWarning: Channel 17 is already in use, continuing anyway. Use GPIO.setwarnings(False) to disable warnings. GPIO.setup(self.port, GPIO.OUT) INFO:snowboy:Keyword 1 detected at time: 2017-11-18 15:56:14 INFO:snowboy:Keyword 1 detected at time: 2017-11-18 15:56:18

    This script turns the LED on for a short duration each time the keyword is is detected.

  9. snowboy with Domoticz
  10. With two hot words, it becomes possible to turn devices on and off. Domoticz can be invoked with three relatively small modifications to the demo2.py script. The changes are shown with a white background.

    import snowboydecoder
    import sys
    import signal

    import urllib.request
    # Demo code for listening two hotwords at the same time interrupted = False def signal_handler(signal, frame): global interrupted interrupted = True def interrupt_callback(): global interrupted return interrupted if len(sys.argv) != 3: print("Error: need to specify 2 model names") print("Usage: python demo.py 1st.model 2nd.model") sys.exit(-1) models = sys.argv[1: # capture SIGINT signal, e.g., Ctrl+C signal.signal(signal.SIGINT, signal_handler)
    def detect_on(): urllib.request.urlopen('http://192.168.0.45:9071/json.htm?type=command&param=udevice&idx=52&nvalue=1') snowboydecoder.play_audio_file(snowboydecoder.DETECT_DING) print('Device turned on.\nListening... Press Ctrl+C to exit') def detect_off(): urllib.request.urlopen('http://192.168.0.45:9071/json.htm?type=command&param=udevice&idx=52&nvalue=0') snowboydecoder.play_audio_file(snowboydecoder.DETECT_DONG) print('Device turned off.\nListening... Press Ctrl+C to exit')
    sensitivity = [0.5]*len(models) detector = snowboydecoder.HotwordDetector(models, sensitivity=sensitivity)
    callbacks = [detect_on, detect_off]
    print('Listening... Press Ctrl+C to exit') # main loop # make sure you have the same numbers of callbacks and models detector.start(detected_callback=callbacks, interrupt_check=interrupt_callback, sleep_time=0.03) detector.terminate()

    I saved this modified script under the name demo3.py (download here. From now on, the lamp with idx 52 can be turned on with the "snowboy" hot word, and turned off with the "alexa" hot word.

    (env) dietpi@domopiz:~/snowboy$ python demo3.py resources/snowboy.umdl resources/alexa.umdl

  11. Next?
  12. Almost there, almost at the point of instructing Domoticz to turn devices on and off with voice commands using Google Assistant and hot word detection by snowboy. But... I ran into a glitch and this post is getting long anyway. So p> Almost there, almost at the point of instructing Domoticz to turn devices on and off with voice commands using Google Assistant and hotword detection by snowboy. However, I ran into a couple of glitches and this post is getting long anyway... and I am not sure I want to continue along this route.

    Granted that sounds like an excuse for not solving my problems but it is true that I am of two minds about using Google Assistant. I am curious to use it and other cloud based voice API such as Bing. The latter appeals to me as it is polyglot and I would rather use French voice commands. However I am loath to depend on a mechanism that requires a working Internet connection to operate devices in my home. In last year's hardest hitting storm we lost electricity for a few hours, but our ISP was offline for three days.

    Consequently, I am looking to a voice controlled solution that does not rely on external vocal recognition. One way would be a multilevel snowboy implementation. There could be two top-level keywords: "turn on" and "turn off". And then at the next level the keywords would be device names. Since snowboy can be trained to recognize new keywords it is all feasible in principle. And since snowboy is language agnostic, those keywords could be in French without any problem.

    Another possibility is Pocket Sphinx an Open Source project from Carnegie Mellon University. There was a well-made report by Alan McDonley on running this package on a quad core (Arm Cortex A53) Rapsberry Pi 3 versus a single core Raspberry Pi B+. The gist seemed to be that results were not too bad on the older Pi and rather good on the newer Pi. So it certainly looks like the quad core (Arm Cortex A7) OrangePi Zero should be able to handle the task. Indeed some preliminary tests are encouraging: I have been able to install Pocket Sphinx and use it control lamps on and off through Domoticz.

    Perhaps, in the end I will have the best of both worlds. There could be two keyword, "hey google" and "hey house" detected by snowboy which would pass on the rest of the vocal command to Google Assistant or Pocket Sphinx. Again, it all seems possible.

    A lot to do. All fun stuff, but it looks like I will have to learn Python.
